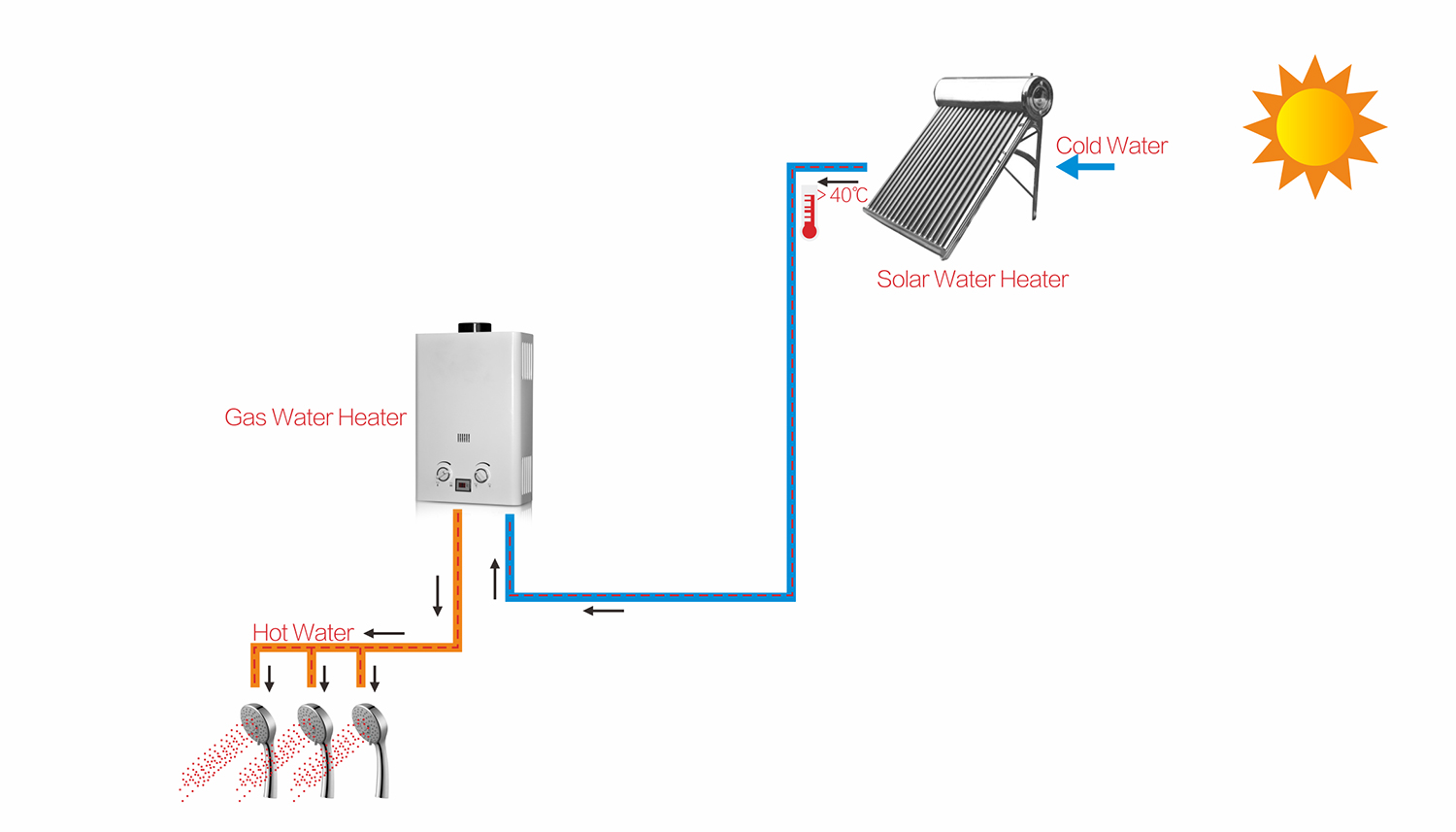

JSD-ECO S1(For Solar Water Heater Backup)
JSD Serial——Open Flue Type Water Heater

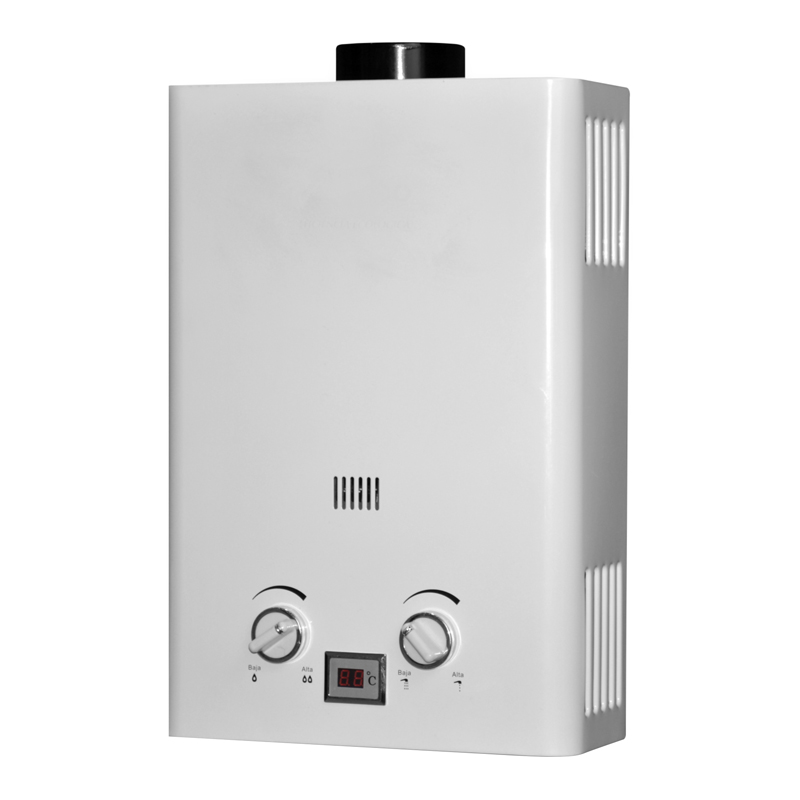

Model: JSD-ECO S1(For Solar Water Heater Backup)
Exhaust Way Open Flue Type & Force Exhaust Typet
Ignition Mode Automatic Electrical Pulse Ignition
Testing Condition Minimal ∆T 25°C
Use Gas Type LPG / Natural Gas
Rated Gas Pressure (Pa) LPG : 2800 Pa Natural Gas: 2000 Pa
Suitable Water Pressure (Mpa) 0.01 ~~ 0.8 Mpa
Heating Status Heating Time ≤15 Seconds ;Over Temperature ≤2℃;Stability Time:≤15 Seconds
Connection Pipe Specs Water Inlet : G1/2'' Pipe ; Water Outlet : G1/2'' Pipe;Gas Inlet : G1/2'' Pipe


Product Details

Rated Water Output (△T= 25℃) L/Min 5L/MIN 6L/MIN 7L/MIN 8L/MIN 9L/MIN 12L/MIN
Rated Heat Loading 10KW 12KW 14KW 16KW 18KW 24KW
Product Size(MM) 40*290*135MM 440*290*135MM 490*310*140MM 520*320*140MM 590*340*140MM 610*350*180MM
Package Size(MM) 540*350*180MM 540*350*180MM 610*360*190MM 640*370*200MM 705*390*200MM 710*405*235MM
Load Qty(PCS)20FT/40FT/40HQ) 840/1700/2000 840/1700/2000 685/1370/1610 600/1220/1420 520/1060/1220 420/860/1000
